Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Common Flat Roof Challenges for Homes on the Central Coast

Though flat roofs may not dominate Australia's roofing market, their appeal is growing significantly among both residential and commercial properties. These roofs are frequently found on patios, carports, walkways, and other areas that require low-pitch roofing solutions. In cases of minimal incline, flat roofs are also known as “skillion roofs.”

While flat roofs offer numerous benefits, they come with specific challenges that homeowners must understand. Recognising the common problems associated with flat roofing systems and implementing effective strategies to mitigate these issues is essential, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salty air can exacerbate roofing difficulties.

What Drives the Increasing Demand for Flat Roofs Among Homeowners?

The rising popularity of flat roofs in both residential and commercial buildings can be attributed to several compelling factors:

• They are quicker and easier to install, facilitating faster project completion
• They offer improved maintenance access, making routine inspections and repairs more straightforward
• They provide an excellent platform for solar panel installations, enhancing energy efficiency

The most significant concern regarding flat roofs is managing water drainage. Water is the primary threat to your roof's integrity. When planning a new roof installation or upgrading an existing one, it is crucial to take various factors into account, particularly rainfall, which can vary significantly across Australia's diverse regions.

What Are the Main Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that allow rainwater to flow rapidly into gutters, flat roofs have a limited slope. This design can lead to prolonged water accumulation, which, if not effectively drained, may result in:

• Surface staining and degradation of roofing materials
• Long-term structural weakening of roofing components
• The growth of mould and mildew, which can pose health risks
• Leaks that can penetrate the building's interior

The solution to resolving these challenges lies in efficient roof plumbing and careful design that considers the unique challenges posed by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Prior to installation, a qualified roofing contractor will evaluate several key factors that impact drainage efficiency:

• Local rainfall intensity and typical weather trends
• Total roof area and accurate dimensions
• Gutter configurations and effective drainage outlets
• Specifications for downpipe dimensions
• Overflow prevention strategies to manage excess water
• Considerations regarding roof pitch to optimise drainage

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with a slope less than this can jeopardise waterproofing efforts and may void product warranties, leading to expensive repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, are not appropriate for very low-pitch applications. For flat roofs, specific roofing profiles designed for effective water shedding are highly recommended to ensure durability and performance over the long term.

Investigating the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

The two most recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This flexible profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove improve water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile uses concealed clips rather than screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the right roofing profile based on your roof pitch and local rainfall conditions is vital for ensuring the long-lasting performance and reliability of your roofing system.

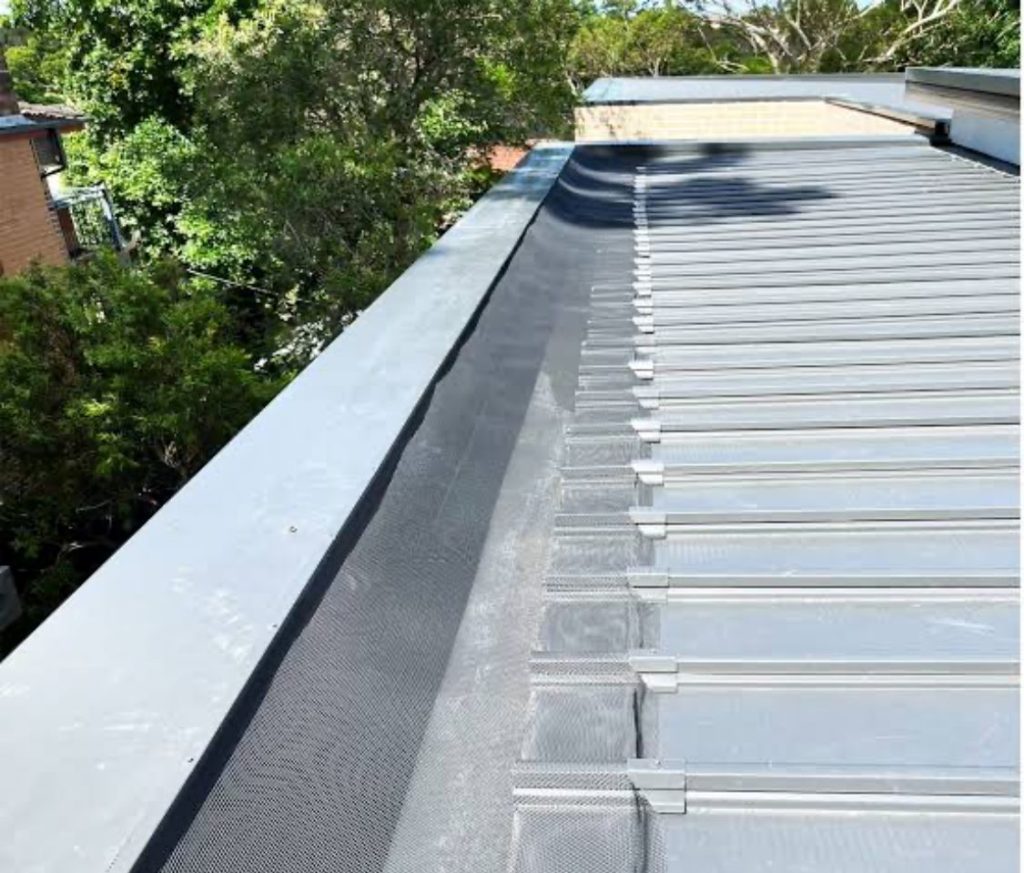

How to Efficiently Manage Box Gutters and Drainage on Flat Roofs

On flat roofs, box gutters are commonly used to connect roof panels to drainage outlets. Positioned below the roof plane, these gutters demand careful detailing and installation to prevent blockages and water back-up issues.

Common challenges associated with box gutters include:

• Debris accumulation from surrounding trees and foliage
• Inadequate fall or slope that obstructs water flow
• Overflow back into the roof structure, leading to leaks
• Blocked downpipes that hinder effective drainage

Addressing these issues begins with sound gutter design and a commitment to regular maintenance to ensure peak functionality.

What Key Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may lack the capacity to manage the water flow demands of flat roofs. It is often essential to install guttering specifically designed to handle larger water volumes. Next, we will explore various drainage and overflow solutions that can be integrated into your flat metal roof design.

• Enable quicker water removal during heavy rainfall
• Effectively clear debris with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, which are ideal for flat metal roofs while also offering an attractive appearance!

We suggest a half-round gutter due to its excellent water-carrying capacity, allowing for faster drainage. This design effectively sweeps away silt and sludge accumulations with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters must be appropriately sized based on local rainfall patterns and connected to suitably sized downpipes (for instance, 100mm × 75mm) that can accommodate substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly mitigate blockage issues.

How Do Flashings Prevent Water Entry at Roof Joints?

Flashings are critical components installed at joints where roof sheets meet walls or other surfaces, including around skylights, chimneys, and internal corners. On flat roofs, proper installation of flashings is essential, as water can accumulate around these joints if not adequately sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to fit the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra care is necessary at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during heavy downpours. Our team takes special care during installation and utilises high-quality waterproof sealant to prevent water pooling in these vulnerable areas.

Why Is Regular Maintenance Essential for Extending the Life of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require regular inspections and maintenance to ensure their effectiveness. This involves:

• Clearing debris from gutters and box gutters to ensure unobstructed drainage
• Inspecting downpipes for potential blockages
• Examining roof surfaces for minor cracks or areas where water may collect
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting routine maintenance checks can prevent the necessity for more extensive repairs down the line, thereby prolonging the lifespan of your roofing system.

Uncover the Advantages of Properly Installed Flat Roofs

When designed and installed by experienced metal roofing professionals, flat roofs provide:

• A modern, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed effectively, enhancing both the functionality and appearance of the building.

How to Ensure You Receive the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can offer both functionality and long-lasting durability in a coastal environment. Whether you are undertaking a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and prevent larger problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Face More Problems Compared to Pitched Roofs?

Flat roofs can indeed experience more drainage challenges if they are not designed correctly. Without an adequate slope, water may pool or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and sealed properly against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are mounted at an angle to optimise sun exposure and prevent water from pooling beneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal gutters situated below the roof line, often located between roof sections or along parapet walls. They are commonly utilised on flat roofs to efficiently manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's structural integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs typically need higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently used to enhance flow and prevent water build-up. Additionally, overflow devices and leaf diverters may be beneficial in minimising maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly enhance the roof's lifespan and overall performance.
